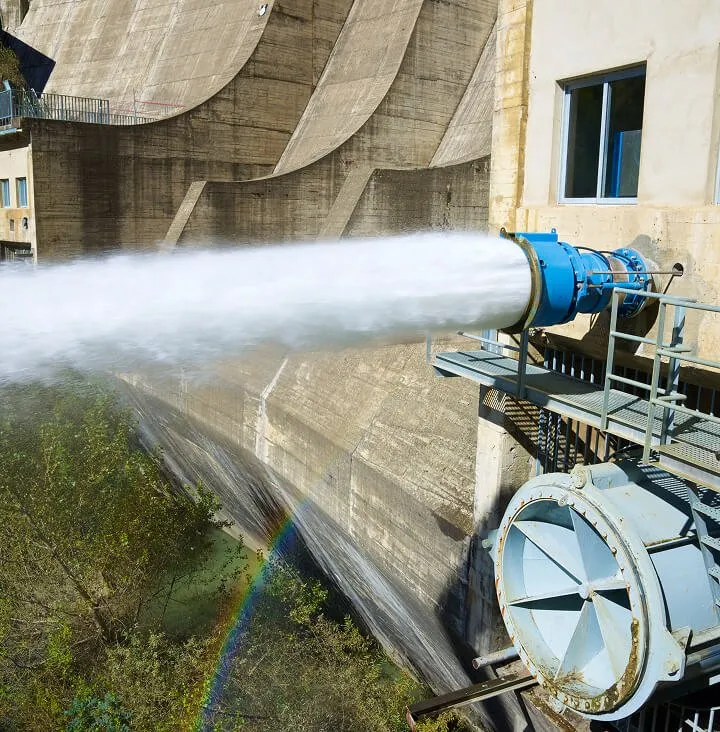

Hydropower Turbine Gearboxes
Midwest Power Products specializes in providing high-quality OEM replacement hydroelectric turbine gearboxes designed to enhance the efficiency and reliability of your hydropower station. Our durable, precision-engineered hydroelectric gearboxes ensure optimal performance, making them the ideal solution for maintaining and upgrading turbine gearboxes for hydroelectric power stations. Trust our expertise to keep your operations running smoothly—contact us for more information about replacement hydro turbine gearbox products today!
Replacement Gearboxes for OEM Hydroelectric Turbines
When it’s time to replace aging or faulty components within your hydroelectric power station, having access to reliable replacement gearboxes for OEM hydroelectric turbines is crucial. At Midwest Power Products, we specialize in delivering top-tier replacement solutions that match the specifications and performance standards of the original equipment, ensuring seamless integration and long-term durability.
We offer hydroelectric turbine gearbox repairs and replacement options designed to original OEM specifications for top brands and manufacturers like Sumitomo, Falk, Foote Jones, Renk Turbo Gear, Philadelphia Gear, David Brown Santasalo, Cotta, and more!
Types of Gearboxes for Hydroelectric Turbine Applications
In hydroelectric power systems, gearboxes play a vital role in transmitting power effectively from the turbine to the generator, ensuring efficient energy transfer and production. Depending on the turbine type, flow rate, and head of water, specific gearbox designs are used to optimize performance and durability.
- Double Helical Gearboxes: Double helical gears have two sets of helical teeth, with each set having opposite handedness. The larger contact area between the teeth and the ability to distribute the load across multiple teeth contribute to a higher load-carrying capacity. This configuration effectively cancels out the axial thrust forces generated by the helical gear teeth, making them suitable for high-speed, Industrial and heavy-duty applications.
- Helical Gearboxes: Known for their efficiency and smooth operation, helical gearboxes are often used in systems where precise and consistent torque is necessary. Their angled teeth configuration ensures optimal power transfer and lower noise levels during operation.
- Planetary Gearboxes: Compact and highly efficient, planetary gearboxes are widely used for hydroelectric applications due to their ability to handle high torque loads while maintaining stability. These gearboxes are ideal for turbines operating at high speeds and varying loads.
- Bevel Right Angle Gearboxes: Typically used in applications requiring a 90-degree change in the direction of power transmission, bevel gearboxes are versatile and durable. They are commonly implemented in hydroelectric turbine systems for their efficiency in transferring torque at steep angles.
- Spur Gearboxes: Featuring straightforward design and reliability, spur gearboxes are best suited for applications requiring moderate torque and speed adjustments. They are economical and ideal for smaller-scale hydroelectric systems.
- Custom Hybrid Gearboxes: For more complex turbine systems, custom gearbox designs that combine features from planetary, helical, or bevel types can be created. These tailored solutions are designed to meet specific operational requirements such as unique turbine designs or challenging power station conditions.
Each gearbox type is selected based on the specific needs of the hydroelectric system, considering factors such as turbine design, torque capacity, speed ratios, and operational efficiency. Proper gearbox selection ensures long-term performance, reduced downtime, and improved energy output for your hydroelectric power station.

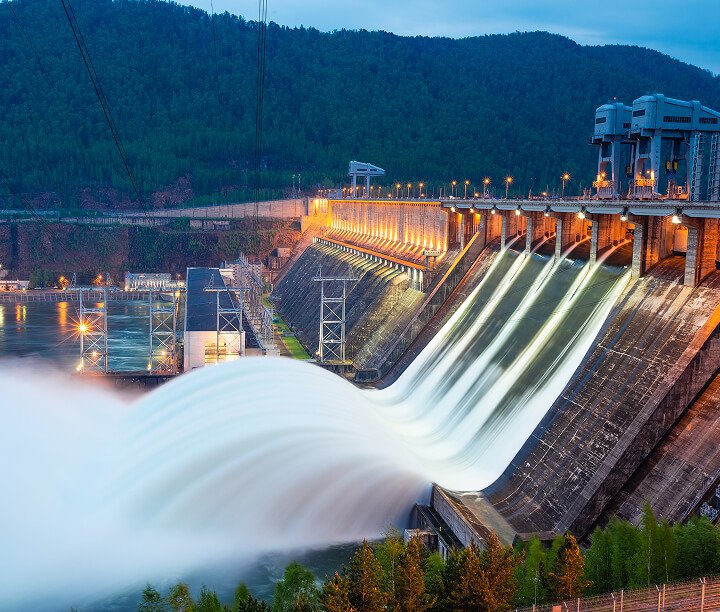

Gear Drives in Hydroelectric Power Plants
Gear drives are essential components in hydroelectric power plants, serving as a critical link between the turbine and the generator. These robust and versatile drives efficiently transfer the mechanical energy generated by the turbine to the generator, enabling the seamless conversion of kinetic energy from water into reliable electrical power.
Hydropower Gear Drive Configurations
- Inline Configuration: This configuration aligns the turbine and generator along a straight axis, providing direct and efficient power transfer.
- Right-Angle Configuration: Suitable for setups where space constraints require a 90-degree change in power direction.
- Shaft-Mount Configuration: Attaches directly to the turbine or generator shaft, reducing the need for additional mounting structures.
- Flange-Mount Configuration: Secures the drive using integrated flanges, ensuring precise alignment and ease of installation.
- Foot-Mount Configuration: Offers stable support with a base-mounted design, ideal for larger or more complex systems.
How Hydroelectric Power Stations Work
Hydroelectric power stations harness the kinetic energy of flowing or falling water to generate electricity. This process relies on the natural water cycle and is a clean, renewable energy source:
Water Collection: Water is stored in a reservoir or flows naturally in rivers, depending on the type of hydroelectric system (storage or run-of-the-river).
Water Channeling: The water is directed through a penstock (a large pipe) to guide it toward the turbines.
Turbine Rotation: The kinetic energy of the water spins the blades of the turbine. The speed and torque can vary depending on the system design and water flow.
Energy Conversion: The turbine is connected to a generator, which converts the mechanical energy into electrical energy using electromagnetic induction.
Electricity Distribution: The generated electricity is transferred through transformers and power lines to be distributed to homes, businesses, and industries.
Water Return: After passing through the system, the water exits the turbine and returns to the downstream river or waterway, completing the process.
